Product parameters

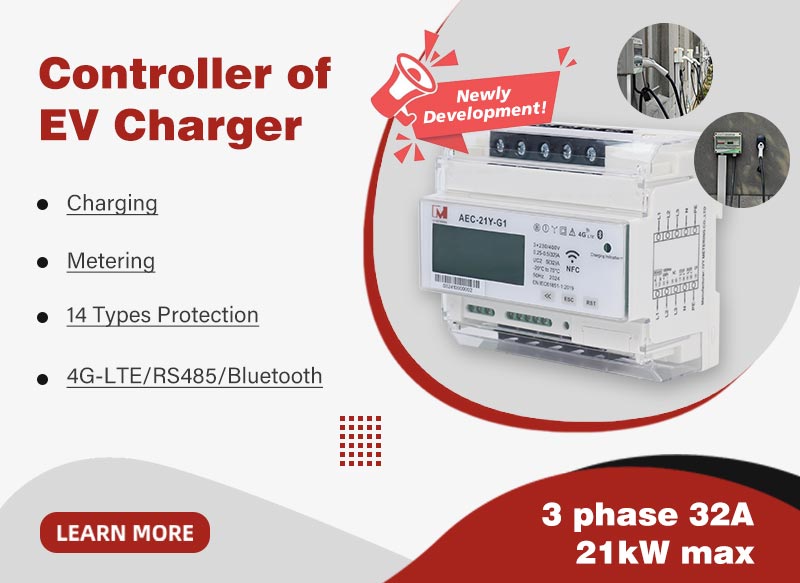

AEC-21Y-G1 Introduction
IVY Metering has launched a new AC charging controller that comes with more functions to enhance user experience. The new EV Charger combines all of the control and monitoring functions essential for the charging process in one compact housing.
The IEC61851 Mode 3 EV Charger Controller (AEC-21Y-G1) designed to provide all of the required control functions for EV charging. The AEC-21Y-G1 can be integrated into OEM Electric Vehicle Supply Equipment (EVSE) for Mode 3 chargers, e.g. Charging Stations or charging units. The AEC-21Y-G1 includes control pilot function for communication with the EV, continuous monitoring of the charging current, 6mA DC fault current detection, and energy monitoring. The AEC-21Y-G1 can be configured to suit different charger needs. The system can work with single phase or three phase systems up to 32A.
Product Features
• Complies with standard IEC61851-1 (mode 3 charging)
• Metering funtion
• Supports M-bus protocol, 4G, RS485 communication, OCPP-J-1.6/Wi-Fi/Ethernet pending
• Modular design, rail installation
• Adjustable charging current (maximum 32A)
• Status LED and LCD display
• RCMU detects 6mA or greater DC leakage current detection
• 14 Type safety protectoion, inclduing PEN fault protection, etc

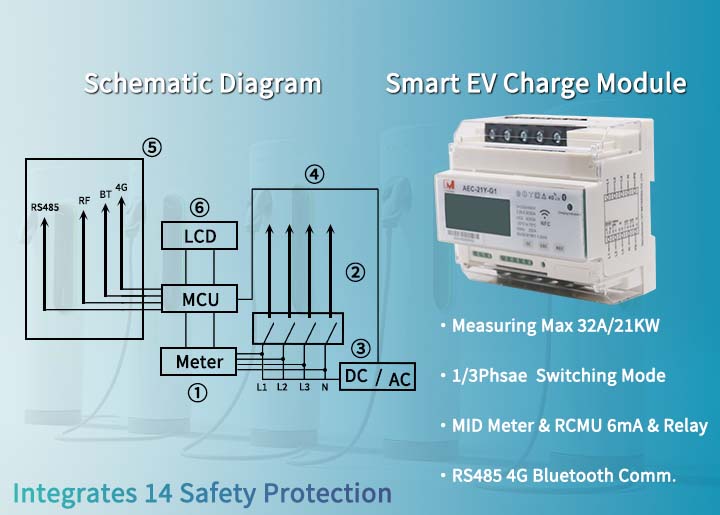

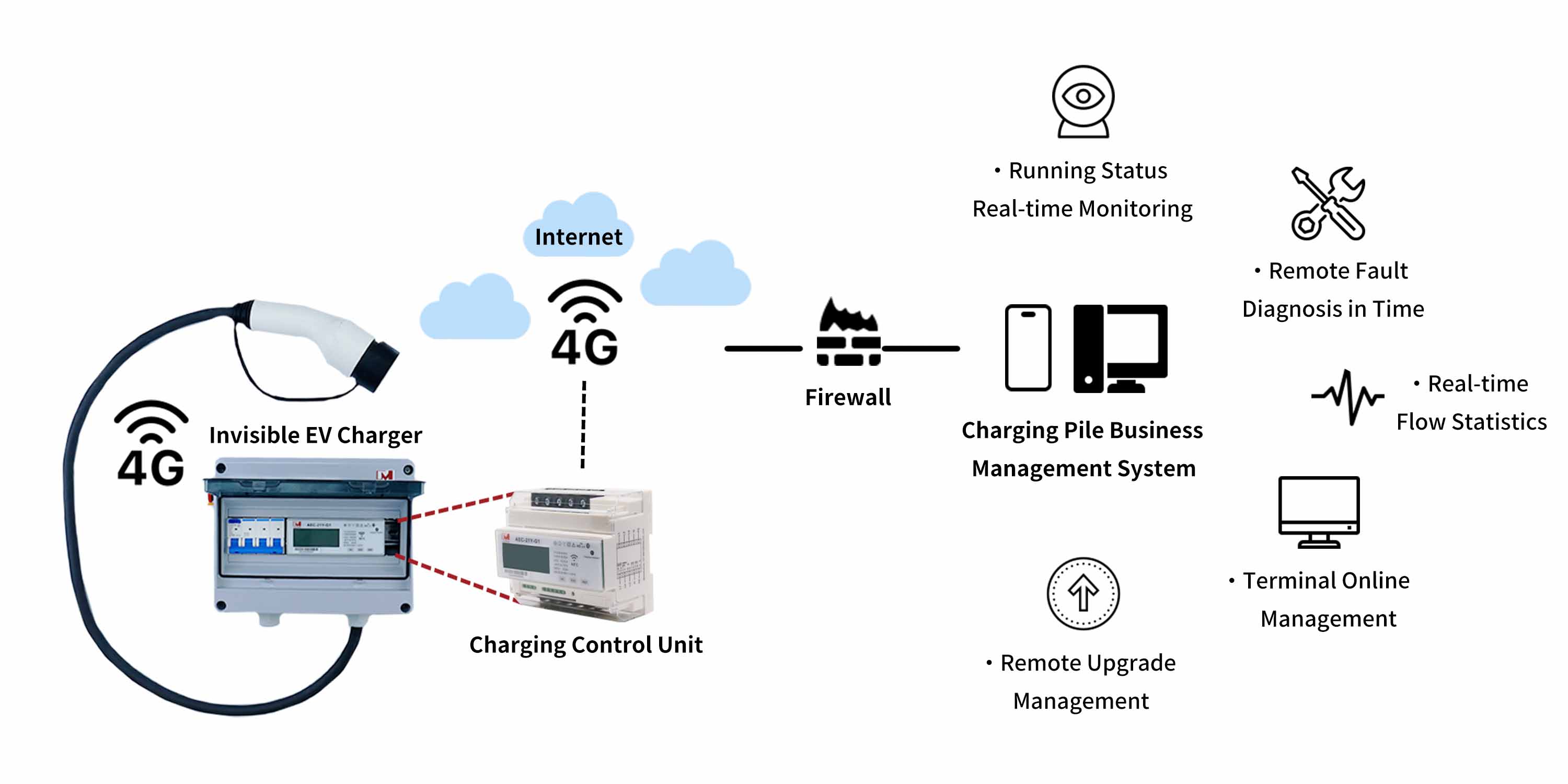

Product Application
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |
